Modular and custom fixturing for metrology

Whether you are inspecting workpieces for aerospace, automotive, electronics, industrial or medical applications, Renishaw fixtures can provide a complete solution. Our extensive range of modular fixturing components is designed to enhance the efficiency and throughput of your inspection process.

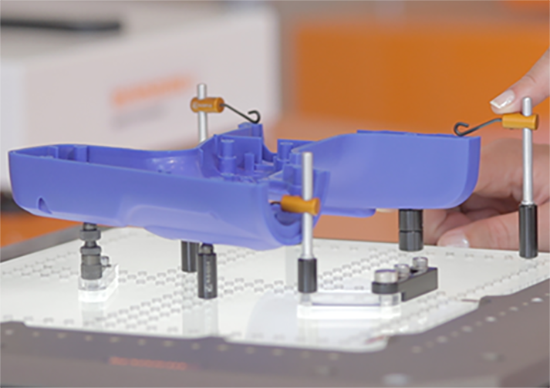

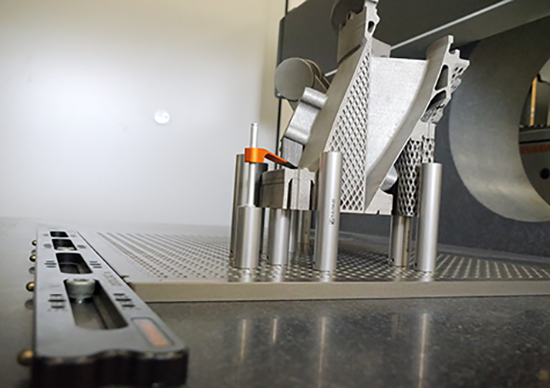

Modular fixturing is a workpiece holding system that uses a series of components for building specialised workpiece holders. It allows for rapid and economical setup, consisting of tooling plates, clamps and components. Renishaw's wide range of modular fixturing can improve throughput, reproducibility and accuracy of your inspection process with quick and repeatable fixturing set-ups.

Designed with the future in mind

What's new?

• Removal of chemical finishing process, resulting in decreased use of hazardous chemicals, water, energy and production waste.
• Enhanced packaging, with reduced plastic waste by 72%.
• New fixturing sets, now available in carry cases for better shipping and storage.
• Increased set offering, to suit more applications giving users more flexibility.
• Manufactured from 303 stainless steel for enhanced corrosion resistance.
• Added cross holes for improved usability.

Environmental benefits

Our new enhanced packaging has led to an impressive 72% reduction in plastic waste for a typical fixturing set.

By adopting alternative manufacturing methods, we've significantly cut down on waste generation, which translates to less reliance on plastic. Our newly designed sets now come neatly packaged in a sleek and compact carry case that not only enhances portability but also prioritises environmental responsibility.

We have eliminated the chemical finishing process for many of our products. This change has led to a significant reduction in hazardous chemicals, water usage, energy consumption, and production waste.

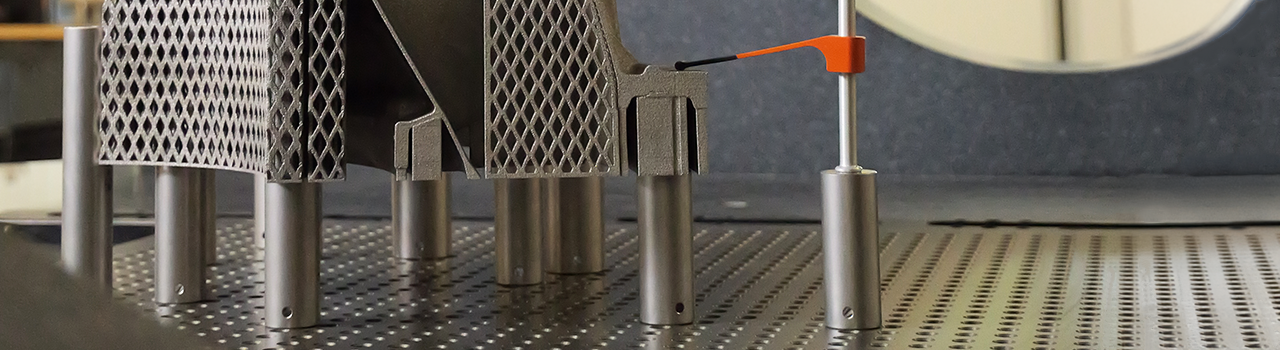

By switching to 303 grade stainless steel for our fixturing components, like standoffs, we've removed the need for additional finishing altogether. This type of stainless steel not only resists corrosion but also looks great on its own! There's no requirement for coatings or treatments to guard against rust and wear, making it an environmentally friendly choice without compromising quality.

How can fixturing benefit you?

Our newly improved fixturing products offer a wide range of benefits and value for your manufacturing needs. By utilising our products, you can achieve faster setup times, higher throughput, and improved quality in your production processes. Additionally, our fixturing solutions help reduce the need for dedicated fixtures, saving you valuable storage space and maintenance costs. With their flexibility and versatility, our products can handle a wide range of parts and processes, making them a versatile choice for your manufacturing operations. Our fixturing products are designed to be durable, reliable, and easy to use, with quick-release mechanisms.

Fixturing shouldn't be complicated; Upgrade yours today with our latest innovations.
