Miscellaneous

Useful fixturing accessories: cones, resting pins, corner viewers, etc.

Thread+
Type+
ProductDetail

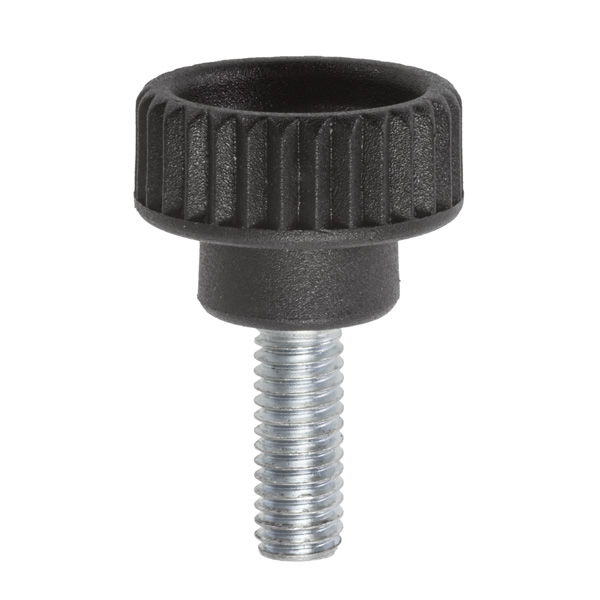

Image of AATK-6

15.0 mm long plastic head screw with M6 thread AATK-6

Detail

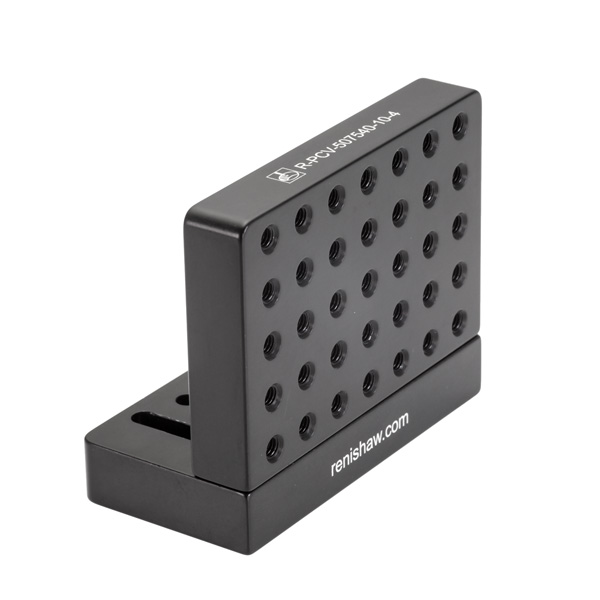

Image of R-PCV-507540-10-4

63.5 mm x 76.2 mm x 38.1 mm vertical base plate with M4 thread R-PCV-507540-10-4

Detail

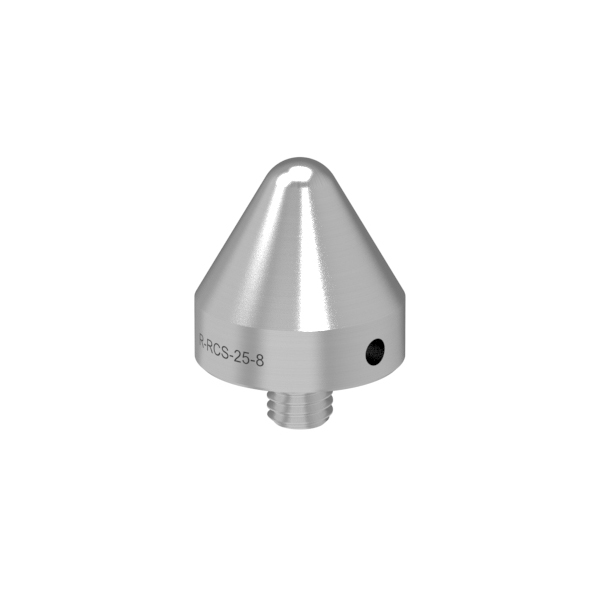

Image of R-RCS-25-8

25.4 mm x 25.0 mm 303 stainless steel resting cone with M8 thread R-RCS-25-8

Detail

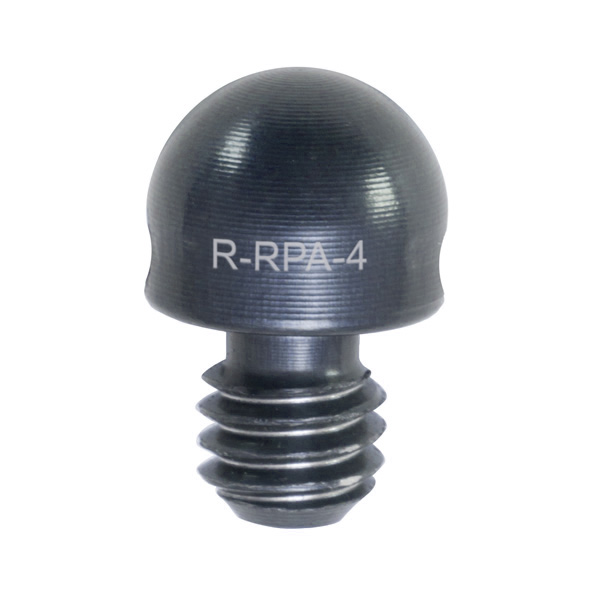

Image of R-RPA-4

Ø6.4 mm x 5.0 mm aluminium resting pin with M4 thread R-RPA-4

Detail

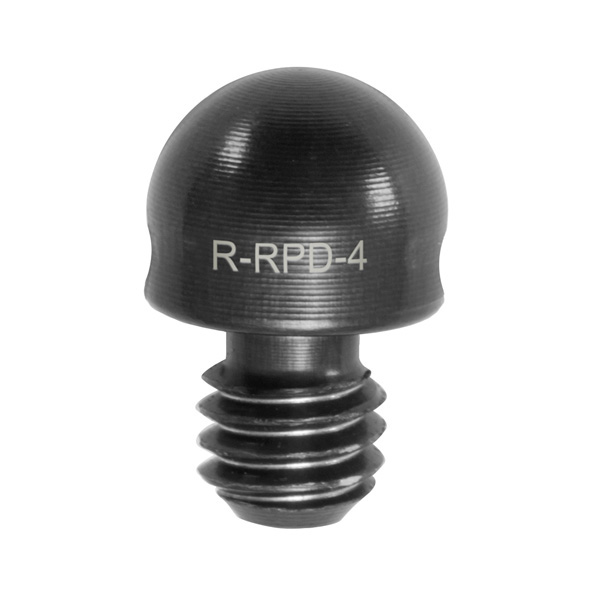

Image of R-RPD-4

Ø6.4 mm x 5.0 mm Polyoxymethylene (POM) resting pin with M4 thread R-RPD-4

Detail

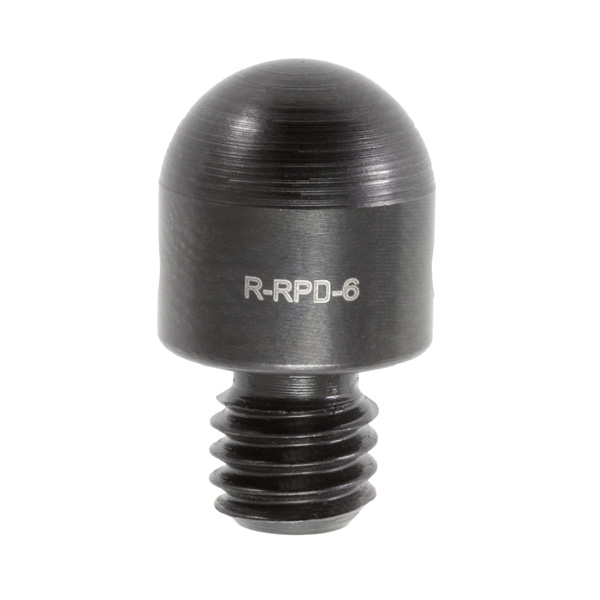

Image of R-RPD-6

Ø9.5 mm x 10.0 mm Polyoxymethylene (POM) resting pin with M6 thread R-RPD-6

Detail

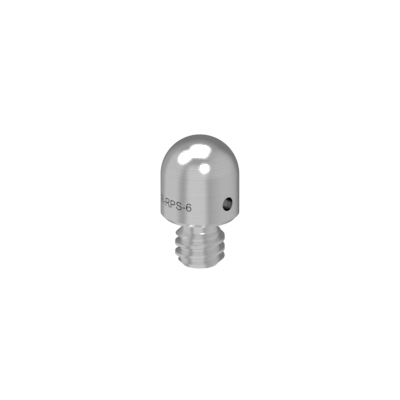

Image of R-RPS-6

Ø9.5 mm x 10.0 mm 303 stainless steel resting pin with M6 thread R-RPS-6

Detail

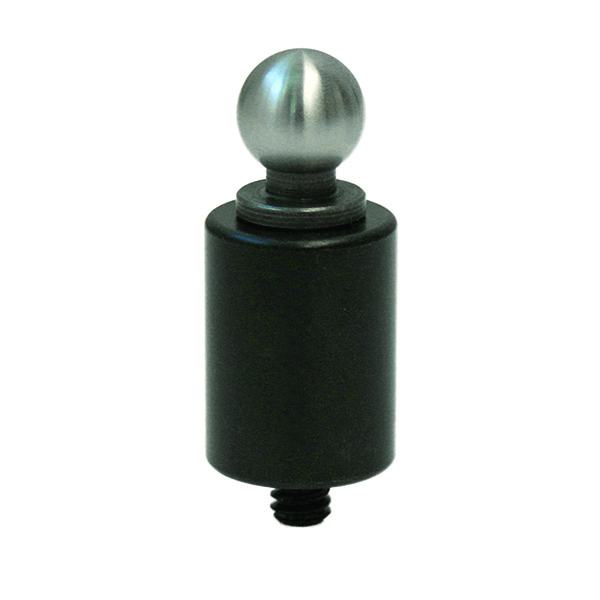

Image of R-STB-13-8

Ø19.1 mm x 41.5 mm tooling ball with M8 thread R-STB-13-8

Detail
Image of R-TC-300190-4

305 mm × 190 mm × 25 mm small component tray R-TC-300190-4

Detail

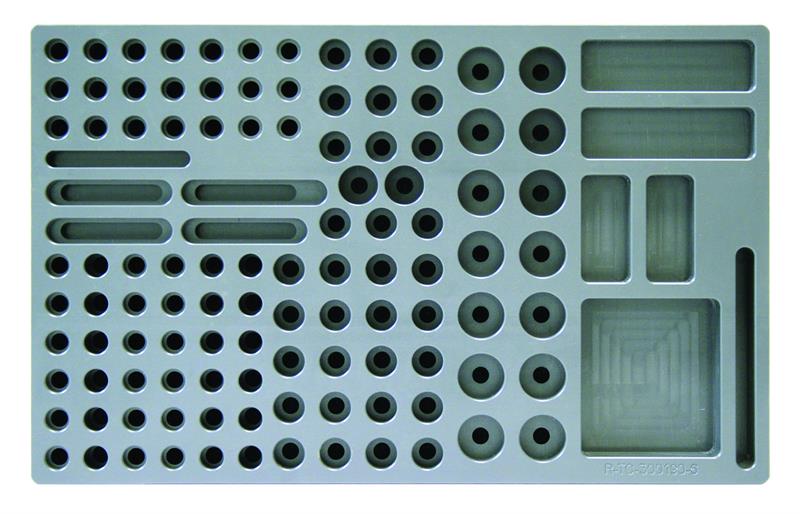

Image of R-TC-300190-6

305 mm × 190 mm x 25 mm small component tray R-TC-300190-6

Detail
